mini UHF PR9200 module

  • UHF 2dbi ceramic antenna module
  • UHF 2dbi ceramic antenna module
  • UHF 2dbi ceramic antenna module
  • UHF 2dbi ceramic antenna module
UHF 2dbi ceramic antenna moduleUHF 2dbi ceramic antenna moduleUHF 2dbi ceramic antenna moduleUHF 2dbi ceramic antenna module

UHF 2dbi ceramic antenna module

  • Model :TS-312M
  • Chip:integrated chip
  • Protocol:ISO18000-6C and 6B
  • Product description: rfid UHF integrated module
  • INQUIRY

Product Description

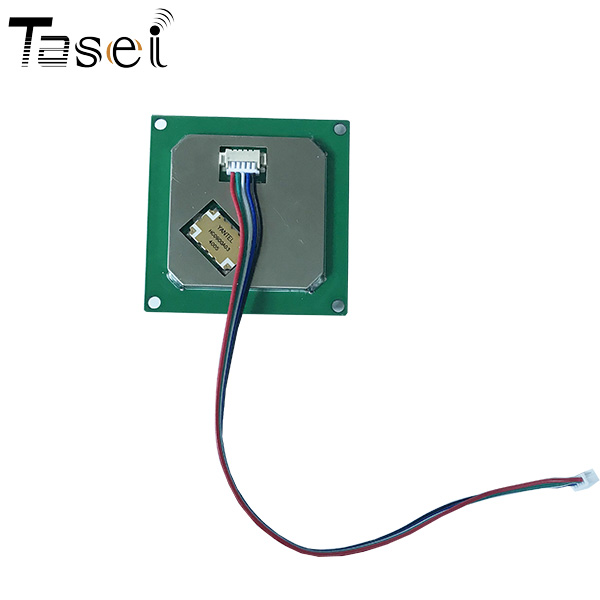

TS-312M is a high performance Integrated module,it integrate antenna and module on one board,mainly used for integrated into handheld reader or others built-in integrated applications

*Stable performance with less affected by rising temperature.

*Super low power consumption; no additional cooling devices required.

*Good consistency in terms of RF parameters.

*Simple peripheral circuit design


Key Features

Excellent read tag performance

Solve the problem of fever completely

tag identification is sensitive and stable.

Stable recognition distance of 2-3 meters.

Multi-tag recognition performance: >50 tags.

tag recognition speed: >50 pcs / sec.

No external heat sink is required.

Long-term continuous full-load operation at room temperature does not cause heat.

Continuous current <200mA @ 3.5V (26 dBm Output).

Peak pulse current <260mA.

Excellent stability

Excellent consistency

24 hours x 365 days of work does not crash.

The performance is affected by external influences such as the outer casing and electromagnetic environment.

Wide temperature design, the temperature drift coefficient is extremely low.

A model of consistent design.

All the highest level components are selected to ensure stable and consistent parameters.

Simple and efficient hardware and software interface

Installation method

The peripheral circuit is extremely simple, single power supply, no external tantalum capacitor. (See Figure 1: Reference Design Circuitry).

Support 5pin WAFER installation.


Specifications


Electrical Characteristics

Operating Temp

-20°C to 70°C

Storage Temp

-20°C to 85°C

Humidity

95%(+25°C)

Parameter

Protocol

ISO 18000-6C(EPC gen2)

ISO 18000-6B

Frequency Range

902MHz~928MHz or 865MHz~868MHz or customize others frequency according to your needs

Working Voltage

DC 3.5V – 5 V

Standby current

<80mA (EN high level)

Sleep Current

<100uA (EN low level)

Operating Current

180mA @ 3.5V (26 dBm Output25°C )

110mA @ 3.5V (18 dBm Output25°C )

Starting Time

<80mS

Output Power

0-26dbm

Output Power Precision

+/- 1dB

Output Power Flatness

+/- 0.2dB

RF connector

I-PEX

Receive Sensitivity

< -70dBm

Peak Inventory Speed

>50 tags/sec

Tag Buffer Capacity

200 tags @ 96 bit EPC

Tag RSSI

Supported

Host Communication

TTL Uart port

Max Baud Rate

115200 bps (Default and Recommended)

38400bps

Heat Dissipation

Air cooling (Don’t need external Heatsink).

Working Regions

US, Canada and other regions following U.S. FCC

Europe and other regions following ETSI EN 302 208 with & without LBT regulations

Mainland China

Japan

Korea

Malaysia

Taiwan





Connector Pin Definition and structural drawings


PIN

Definition

Description

1

GND

Ground

2

EN

High level enable module

3

RXD

Grounding

4

TXD

5

VCC

Power supply (3.3-5V)
